Line Stop
Line stop is the process of isolating a piping system to provide a shut off. This process serves as a control, or temporary valve, which can be removed after alterations or valve replacements have been made. With a hot tap previously made on a line, a line stopper is then attached to a temporary valve, and the valve is opened. The line stopper is hydraulically or mechanically pushed into the line to seal the pipe. After performing the necessary service, the stop is removed, and a blind flange is installed onto the sleeve.
What is Line Stop?
Line Stop is a technique developed from Hot Tap for isolating part(s) of piping system by inserting a solid seal into to system to block the flow.
Key Equipment are

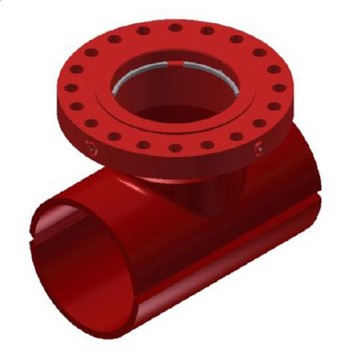

Line Stop Fittings with Lock-O-Ring
Line Stop / Temporary Valves (Sandwich Valve)
Hot tap Machine
Line Stop Machine

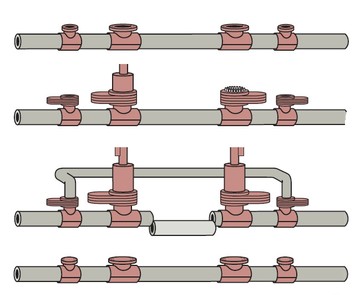

Application of Line Stop
You could apply Line Stop for
Temporary isolation to repair damaged line
Rerouting the system
Recovery of pipeline pigs or other instrument
